Sabvoton 100amp 48-72v bluetooth controller

Sabvoton Intelligent Programmable Sine Wave Controller for eBikes & Electric Motorcycles (48V-72V, 100A, 4800W-7200W)

Overview: The Sabvoton Intelligent Programmable Sine Wave Controller is a high-performance, highly efficient motor controller designed for eBikes and electric motorcycles. With a universal input voltage range (48V, 52V, 60V, 72V) and a peak power output of 7200W, this controller offers smooth, silent operation, enhanced motor efficiency, and extended battery life. Ideal for both casual riders and enthusiasts, it ensures superior control and comfort with advanced features such as regenerative braking, smart motor matching, and customizable settings via mobile app or computer.

Key Features:

• Programmable Sine Wave Technology: Delivers a high-efficiency, smooth, and quiet ride with reduced motor torque ripple. The controller adapts to various motor types through automatic self-learning, optimizing performance.

• Universal Voltage Compatibility: Supports 48V, 52V, 60V, and 72V systems, making it suitable for a wide range of electric vehicles and motorcycles.

• High Power & Performance:

  • Rated Power: 48V (3300W), 52V (3600W), 60V (4200W), 72V (5000W)
  • Peak Power: 48V (4800W), 52V (5200W), 60V (6000W), 72V (7200W)
  • Max DC Current: 100A | Max Phase Current: 250A

• Smart Features:

  • 5-speed throttle and PAS levels
  • Adjustable speed limits
  • Reverse functionality
  • Anti-theft system
  • Regenerative and electric braking
  • Keyless start for added convenience

• Enhanced Protection & Safety:

  • Over/under voltage, over-current, overload, and overheating protections
  • Anti-runaway and locked motor protection for added safety
  • Waterproof IP65 rating for durability in various environments

• Efficient Heat Management: Designed with a thick aluminum heat sink for optimal heat dissipation, ensuring safe and reliable operation during high-performance use.

• Mobile & Computer Compatibility: Easily modify controller settings using the mobile app via Bluetooth or through computer software. This feature allows for quick parameter adjustments to suit different riding conditions and motor configurations.

• Multi-Function Interface: Connects to peripheral devices such as a color display, Bluetooth module (for app communication), and even a CAN bus for integration with body instruments and BMS systems.

Package Includes:

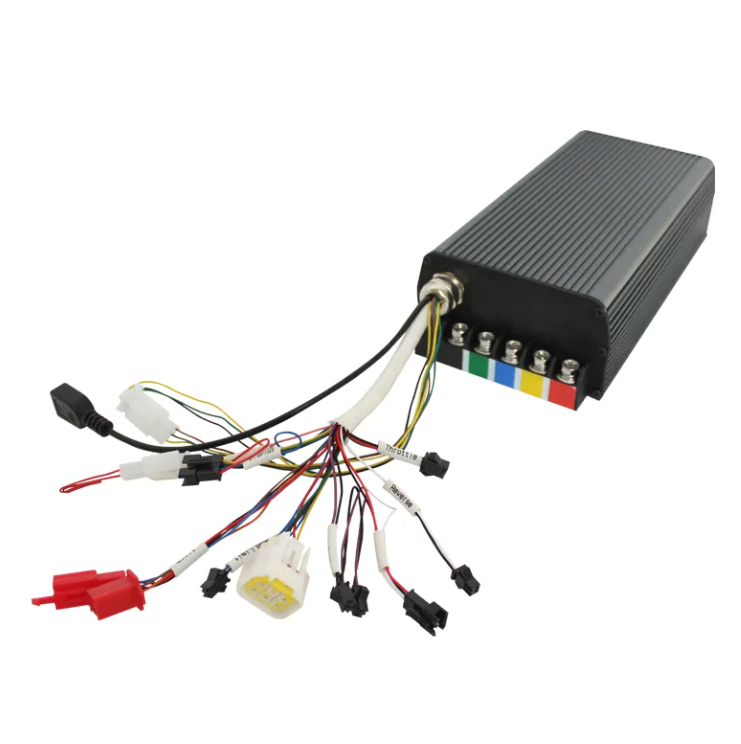

• 1x Sabvoton 24 MOSFET Intelligent Programmable Sine Wave Controller (48V-72V, 100A, 4800W-7200W)
• 1x Light Connection Adapter Cable (O-ring to SM-2A Plug)
• 1x Hall Sensor Adapter Cable (DJ7061A-2.3-11 to DJ7061Y-2.8-21 Plug)
• 1x Battery Power Adapter Cable (O-ring to Anderson Plug)

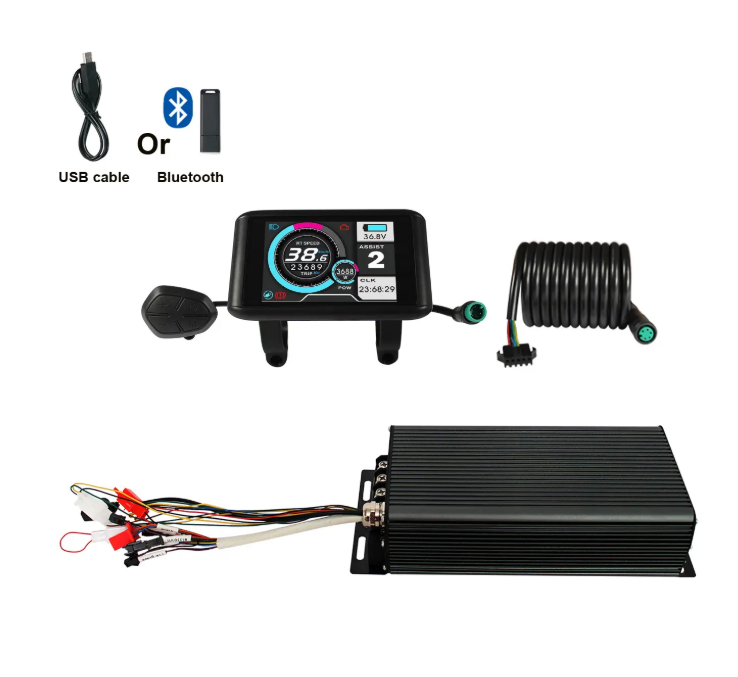

Optional Add-Ons:

• UKC1 Color Display
• Bluetooth Module (for mobile app connection and settings adjustment)

Technical Specifications:

• Power Supply: 48V/52V/60V/72V
• Rated Power: 3300W - 5000W
• Peak Power: 4800W - 7200W
• Low Voltage Protection: 40V-60V
• Rotor Position Detection: Hall Sensor
• Mobile App/Computer Configuration: Yes

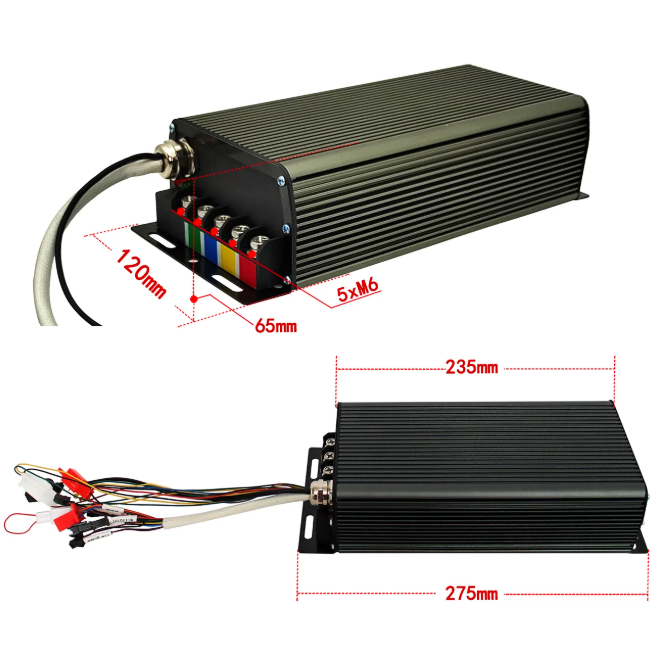

• Dimensions: 275x121x62mm
• Weight: 2.05 kg
• Waterproof Rating: IP65

Why Choose Sabvoton Controller? This advanced motor controller is designed for those seeking superior performance and reliability. Its intelligent programming and safety features make it a great choice for enhancing your eBike or electric motorcycle’s efficiency, comfort, and safety. Whether you're cruising on flat terrain or climbing hills, the Sabvoton controller ensures smooth, powerful control with every ride.
